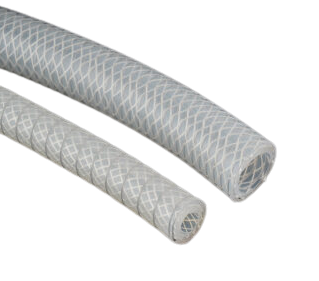

Platinum Cured Silicone Hose Reinforced with Polyester Braiding and SS 316 Helical Wire

Platinum Cured Silicone Hose Reinforced with Polyester Braiding and SS 316 Helical Wire

Platinum cured silicone hose Reinforced with SS 316L Helical wire and polyester braiding having better flexibility with high pressure resistance. The product is suitable in pressurized fluid transfer application.

Key Features

  • Designed for high vacuum rating applications
  • Having antistatic properties to dissipate static electrical charge
  • Imports no taste and odor
  • Lot traceable
  • Available with 316L Tri-Clovers end having RA value  0.5 at Bore
  • Sterilizable by Autoclave, Ethylene Oxide Gas and Gamma Radiation

Applications

  •  Pharmaceutical Processing
  • Powder and Fluid Transfer
  • High Vacuum Pump Applications
  • Food Processing
  • Load Cell Application
  • Biotechnology
  • Bulk Transfer
  • Fermentations and Bioreactors
Size in MM (ID x OD) Size in Inch (ID) *Max Working Pressure (Bar) *Min Burst Pressure (Bar) Min Band Radius(MM) Vacuum Rating in MM HG
6 x 13 1/4″ 12.5 49.0 60 760
9 x 16 11/32″ 12.5 49.0 70 760
12 x 20 1/2″ 11.5 45.0 70 760
16 x 24 5/8″ 11.0 36.0 85 760
19 x 27 3/4″ 10.0 34.5 95 760
25 x 35 1″ 9.5 34.5 140 760
32 x 42 1 1/4″ 8.5 28.0 150 500
37 x 47 1 1/2″ 8.0 30 175 500
50 x 62 2″ 6.5 25 245 400
